pygemc

pygemc is the Python API used by GEMC to define detector geometry, materials, optical properties, mirrors, and lightweight output-analysis workflows. It lets users build GEMC databases with Python scripts, preview geometry with PyVista, and inspect GEMC CSV or ROOT output without writing C++.

The package is installed with pip or as part of the GEMC source build.

Features

• Python classes for GEMC geometry and material databases
• GVolume helpers for common Geant4 solids such as boxes, tubes, cones, and trapezoids
• GVolume.g4placement_type to select the G4Transform3D active or passive constructor
• GMaterial helpers for chemical formulas, fractional-mass mixtures, and optical/scintillation properties
• GConfiguration run, variation, factory, SQLite, ASCII, and PyVista configuration handling
• autogeometry() convenience setup for detector scripts
• SQLite and ASCII database output
• PyVista rendering, interactive Qt display, and VTK.js .vtksz export for geometry inspection and documentation
• gemc-system-template CLI for generating ready-to-run detector systems
• Python code snippets for supported Geant4 solid constructors
• gemc-sqlite CLI for creating and inspecting GEMC SQLite database files
• gemc-analyzer CLI for summarizing and plotting GEMC CSV or ROOT output
• Unit conversion helpers for length, angle, time, and energy strings
• Pytest suite that does not require a compiled gemc binary

Installation

Stable PyPI Install

Use a Python virtual environment for direct pip installs. On macOS with Homebrew use /opt/homebrew/bin/python3 to ensure the correct interpreter is used:

/opt/homebrew/bin/python3 -m venv ~/venv/pygemc
source ~/venv/pygemc/bin/activate
python -m pip install --upgrade pip

Install pygemc from PyPI with:

python -m pip install pygemc

Optional ROOT-file analysis dependencies:

python -m pip install "pygemc[root]"

Install with GEMC

When GEMC is built from source, pygemc available in your scripts without any activation step or separate pip install and gemc and Python tools are available:

gemc -v
gemc-system-template --help
gemc-sqlite --help
gemc-analyzer --help

Quickstart

Create a detector template:

gemc-system-template -s counter
cd counter
./counter.py

The generated system contains:

File	Purpose
counter.py	Main geometry-builder script
geometry.py	Example volumes, including a flux detector
materials.py	Example methane-gas material
counter.yaml	GEMC steering card
README.md	Placeholder notes for the generated detector

Run with PyVista visualization:

./counter.py -pv

Export a VTK.js scene:

./counter.py -pvvtk counter -pvz 0.25

Use a light flat background for documentation exports:

./counter.py -pvvtk counter -pvbg "0.92 0.92 0.98" -pvbgt none

Run the generated simulation with GEMC when the compiled gemc executable is available:

gemc counter.yaml

Analyze output:

gemc-analyzer counter_t0_digitized.csv totEdep --kind csv --bins 50

Geometry API

Typical geometry scripts create a configuration and publish volumes/materials to it:

from pygemc import GMaterial, GVolume, autogeometry

cfg = autogeometry("examples", "counter")

gas = GMaterial("methaneGas")
gas.description = "methane gas CH4 0.000667 g/cm3"
gas.density = 0.000667
gas.addNAtoms("C", 1)
gas.addNAtoms("H", 4)
gas.publish(cfg)

flux = GVolume("flux_box")
flux.description = "air flux box"
flux.make_box(40.0, 40.0, 2.0)
flux.set_position(0, 0, 100)
flux.material = "G4_AIR"
flux.color = "3399FF"
flux.style = 1
flux.digitization = "flux"
flux.set_identifier("box", 2)
flux.publish(cfg)

Placement convention

GVolume.g4placement_type selects which Geant4 placement convention GEMC should use for a volume:

Value	Meaning
active	Default; uses G4Transform3D(rotation, translation)
passive	Uses G4PVPlacement(rotation, translation, ...), matching GEMC2/clas12Tags conventions

Most new GEMC3 geometry can use the default active convention. Detector systems ported from GEMC2 that rely on frame rotations should set:

gvolume.g4placement_type = "passive"

This field is written to SQLite geometry databases. Existing SQLite databases are upgraded with the missing column when a geometry script publishes new rows.

Common command-line options accepted by geometry scripts:

Option	Purpose
-f, --factory	Select sqlite or ascii output
-v, --variation	Select the geometry variation
-r, --run	Select the run number
-sql, --dbhost	Select the SQLite file path
-pv	Show a PyVista window
-pvb	Show a PyVistaQt background plotter
-pvvtk	Export a VTK.js .vtksz scene
-pvz	Set the VTK.js export zoom
-pvbg	Set the PyVista background color as a name, hex string, or r g b triple
-pvbgt	Set the optional PyVista top gradient color; use none for a flat background
--read-yaml	Read g4camera direction and g4view.background settings from a GEMC YAML

PyVista Visualization

PyVista support is central to pygemc: geometry scripts can display the detector as they build it, open an interactive Qt viewer, or export a .vtksz scene that can be published in documentation.

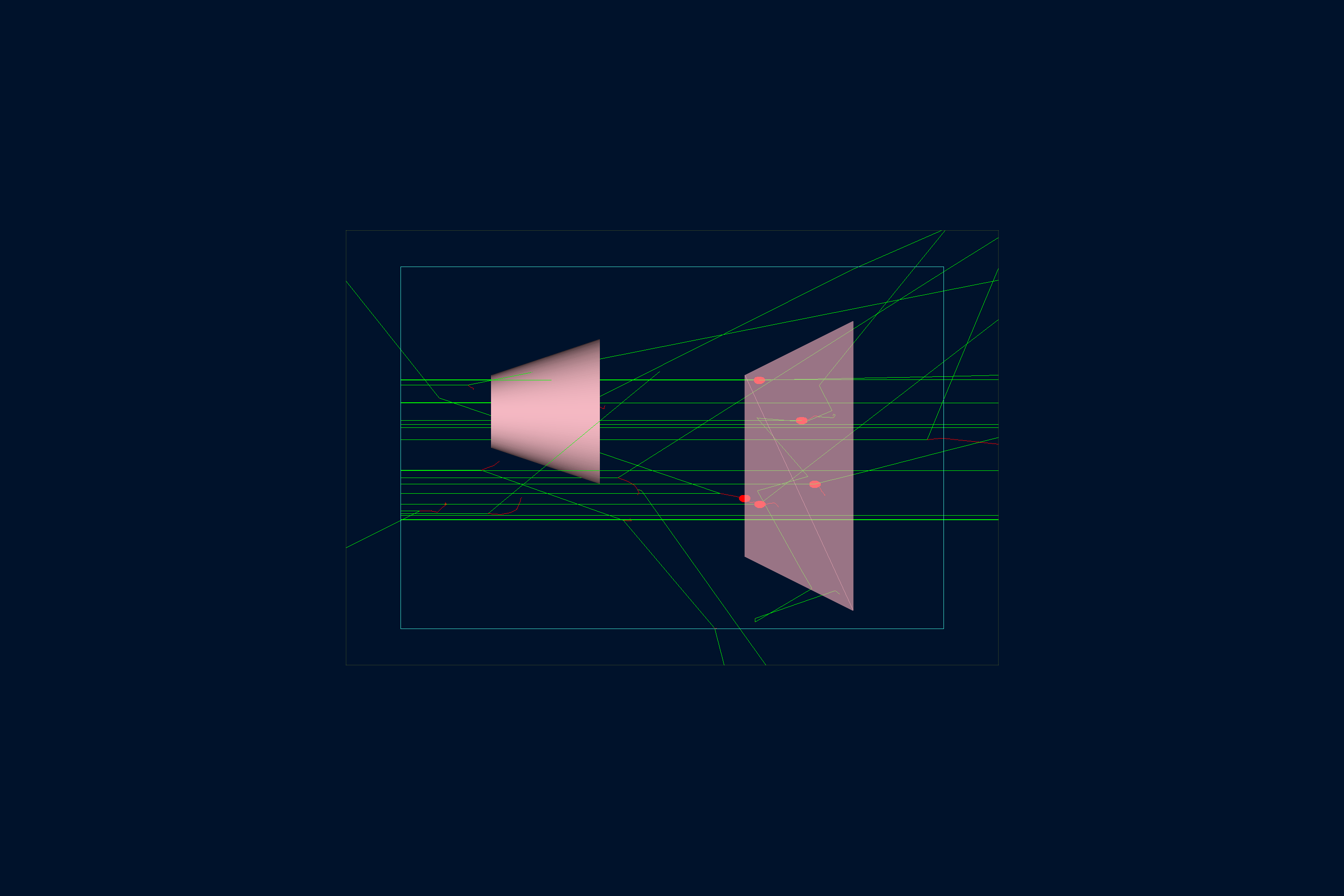

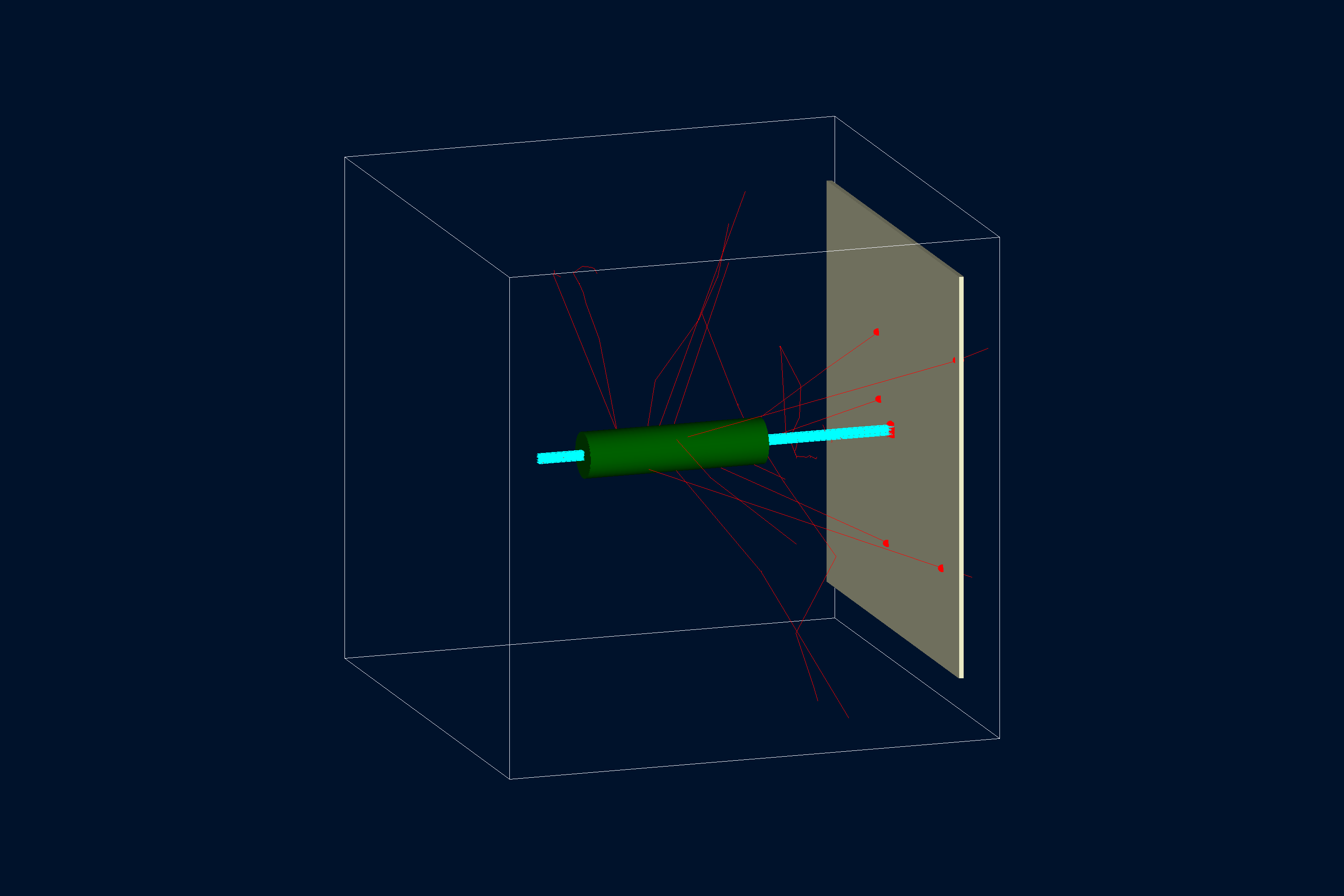

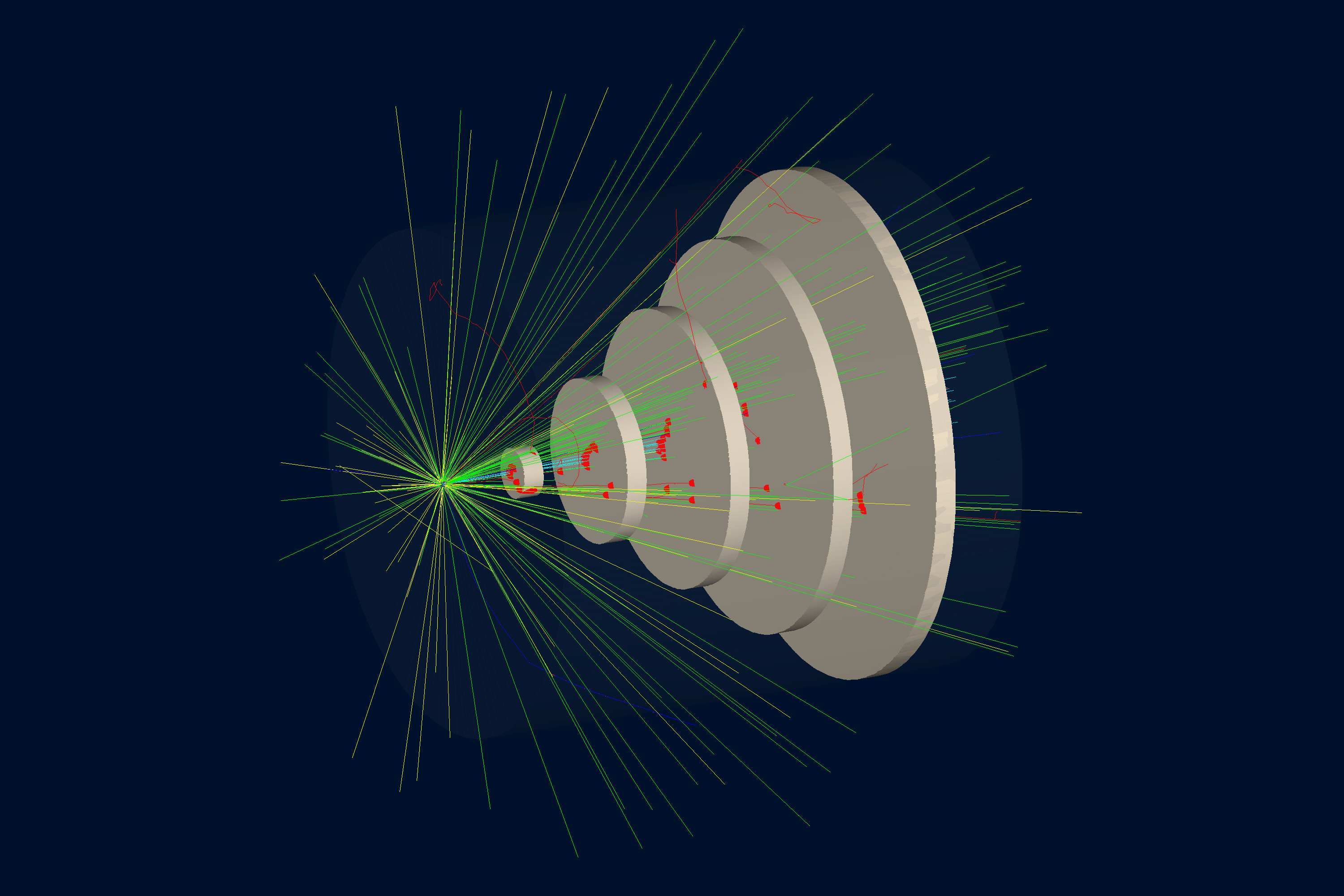

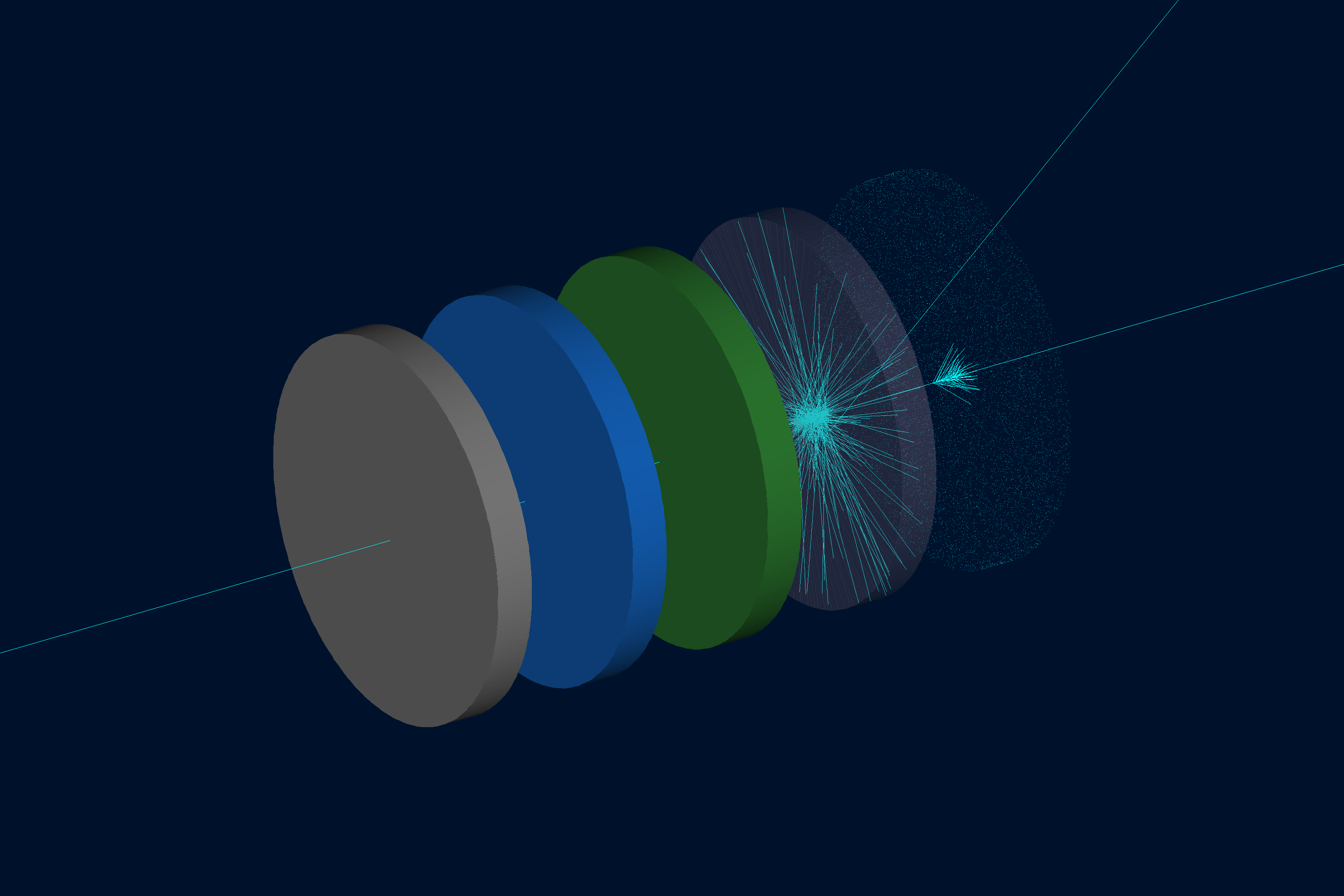

Example	Preview
B1
B2
Materials
Simple Flux

Open the linked interactive PyVista scenes generated from the GEMC examples.

GitHub README pages cannot embed .vtksz files directly, so the preview image links to the hosted VTK.js viewer.

Command-Line Tools

Command	What it does
gemc-system-template -s counter	Generate a detector skeleton named counter.
gemc-system-template -sl	List supported Geant4 solid snippets.
gemc-system-template -gv G4Box	Print a volume-construction snippet for a G4Box.
gemc-system-template -gv G4Tubs -write_to geometry.py -geo_sub build_tube	Write a G4Tubs snippet to geometry.py.
gemc-sqlite -n mydetector.sqlite	Create a new SQLite database with the GEMC geometry and materials schema.
gemc-sqlite -sql mydetector.sqlite -sv	Open an existing database and list its volumes.
gemc-sqlite -sql mydetector.sqlite -sm	Open an existing database and list its materials.
gemc-sqlite -sql mydetector.sqlite -sv -ef examples -vf default -sf counter -rf 1	Filter listed volumes by experiment, variation, system, and run number.
gemc-analyzer counter_t0_digitized.csv --kind csv	Summarize a GEMC CSV output file.
gemc-analyzer counter_t0_digitized.csv totEdep --kind csv --bins 50	Plot a digitized variable with 50 bins.
gemc-analyzer counter_t0_true_info.csv --kind csv --data true_info --plot yvsx --xlim -20 20 --ylim -20 20	Plot true hit positions in the y-vs-x plane.
gemc-analyzer out.root E --kind root --detector flux --save energy.png	Save a ROOT-based analyzer figure without opening a GUI.

Tests

Run the standalone Python tests:

pytest
pytest tests/test_analyzer.py
pytest tests/test_cli.py
pytest tests/test_gconfiguration_yaml.py
pytest tests/test_geometry.py
pytest -v
pytest -k "sqlite"

The tests cover analyzer plotting, CLI behavior, YAML-driven PyVista configuration, and geometry database generation. They intentionally do not require Geant4 or a compiled gemc executable; full simulation tests live in the parent GEMC Meson build.

Project Layout

Path	Purpose
src/pygemc/api/	Geometry, materials, units, SQLite output, PyVista support, and templates
src/pygemc/analyzer/	CSV/ROOT readers, plotting, and analyzer CLI
tests/	Standalone pytest suite
releases/	Release notes
pyproject.toml	Python packaging metadata and console scripts
meson.build	Meson subproject integration used by GEMC

Documentation

• GEMC homepage
• Python API overview
• Quickstart
• Examples
• GEMC source repository
• CLAS12 GEMC systems repository
• Documentation website repository
• GEMC2 / CLAS12 repository

Contributing

Keep patches focused and run the relevant pytest targets before opening a pull request. If a change affects the integrated GEMC build, also run the parent repository Meson tests for the affected examples or modules.

License

pygemc is distributed under the GEMC Software License, the same license used by the main GEMC source repository. See LICENSE.md.
